Description of TZM Molybdenum Plate
Yiwu Yitech Trading Co., Ltd. has supplied the ASTM B386 TZM plate and sheet for many years. TZM alloy, which stands for Titanium-Zirconium-Molybdenum, is a high-performance material widely used in high-temperature applications due to its excellent mechanical properties. This alloy combines the strength of molybdenum with the added benefits of titanium and zirconium, significantly improving its resistance to deformation under extreme conditions.
TZM Molybdenum Plate is particularly known for its outstanding creep resistance, which makes it ideal for use in environments where materials are subjected to prolonged high temperatures and mechanical stress. The addition of titanium and zirconium enhances the alloy's resistance to oxidation and improves its overall strength at elevated temperatures, making it a preferred material for aerospace, nuclear, and metallurgical industries, where reliable performance at high temperatures is critical.
TZM Molybdenum Plate has a high melting point, high strength, high elastic modulus, and high expansion. It has the characteristics of a small coefficient, low vapor pressure, good electrical and thermal conductivity, strong corrosion resistance, and good high-temperature mechanical properties, so it can be widely used in many fields.
The manufacturing process of TZM Molybdenum Plate
• Powder metallurgy route: -325 mesh Mo powder + TiH₂/ZrH₂/C mixture → cold isostatic pressing 200 MPa → 1500 ℃ liquid phase sintering → 1200 ℃ hot isostatic pressing (HIP), density ≥99%, grain size ASTM 7-9 grade.
• Melting and casting route: vacuum arc melting three times remelting → 1100 ℃ multi-directional rolling → stress relief annealing 900 ℃, recrystallization temperature is 250 ℃ higher than pure molybdenum.
Applications of TZM Molybdenum Plate
1 Aerospace: Used for manufacturing high-temperature components such as jet engine nozzles and high-temperature gas turbine parts.
2 Defense: Used for manufacturing high-temperature warheads, missile engines, etc.
3 Electronics: Used for manufacturing vacuum tubes, semiconductor processing equipment, optical glass processing equipment, etc.
4 Medical equipment: Used for manufacturing medical equipment such as X-ray targets, pacemakers, etc.
5 Environmental protection: TZM alloy can be used as a catalyst carrier and environmental protection material.
Specification of TZM Molybdenum Plate
|
Main Components |
Ti:0.4-0.55%, Zr:0.06-0.12%, C:0.01-0.04% |
|
Purity |
≥95% |
|
Density |
10.22g/cm3 |
|
Width |
Max 600 mm |
|
Length |
Max 1500 mm |
|
Thickness |
Customized |
|
Tensile strength |
≥830MPa |
|
Surface |
Polishing, Grinding, Chemically cleaned |
|
Standard |
ASTM B386, TYPE 364 |
Testing and Quality Control of TZM Molybdenum Plate
FAQ for TZM Molybdenum Plate
Are you a TZM Molybdenum Plate factory or a TZM Molybdenum Plate manufacturer?
A: Yes, we are a TZM Molybdenum Plate factory, but we generally use our trading company to handle the business abroad. It will be more convenient to receive the remittance and arrange the shipment.
What is the delivery method of TZM Molybdenum Plate?
A: Generally, we send TZM Molybdenum Plates by UPS, DHL, or FedEx. Also, we can send by sea to a seaport or by air to the closest airport.
Why is your TZM Molybdenum Plate so cost-effective?
A: We cut out the middlemen in the end-to-end manufacturing process, and we obtain raw material directly from its source.
Do you do spot quality inspection of TZM Molybdenum Plate or full inspection of TZM Molybdenum Plate?
A: 100% full inspection for sure. All unqualified TZM Molybdenum Plates are discarded.
How do you ensure your lead time for TZM Molybdenum Plate?
A: From material preparation to machining and finally to a full inspection. Every stage of production is strictly monitored and controlled to give you an accurate delivery time.
What is the MOQ of TZM Molybdenum Plate?
A: Depends on the quantity of TZM Molybdenum Plate; generally, no MOQ limit.
How to pay for the TZM Molybdenum Plate?
A: A bank transfer (T/T) will be acceptable.
What is the delivery time of TZM Molybdenum Plate?
A: Around 7-20 days, which depends on the quantity and production of TZM Molybdenum Plate.
What kind of package of TZM Molybdenum Plate is it?
A: Generally, we use a carton case or a plywood case with protective material inside to ensure the safety of TZM Molybdenum Plate.
What is the lead time of TZM Molybdenum Plate?
A: From the order placed to cargo receiving will take around 10-25 days.

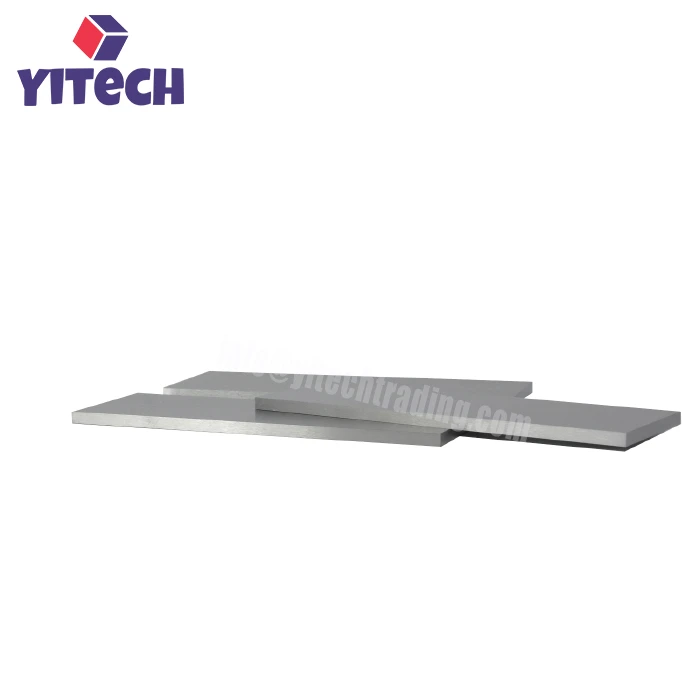

Picture of TZM Molybdenum Plate
