CNC Lathe Straight Shank Tungsten Carbide Drill Bits

Description of CNC Lathe Straight Shank Tungsten Carbide Drill Bits

A CNC lathes straight shank tungsten carbide drill bit is a slender rod machined from a single piece of tungsten carbide. It has a dark gray exterior and features fine spiral grooves extending from the tip to the end of the shank. The drill is 150 mm long, with a 100 mm blade and a 50 mm shank. The shank diameter is a standard 10 mm. The straight shank has a chamfered end for easy insertion into a lathe turret or live toolholder. The front end is ground into a double-edged twist pattern, resulting in a sharp cutting edge, deep and uniform spiral grooves, and a smooth, scratch-free groove surface. The entire drill bit is formed in one operation using a five-axis grinder, ensuring concentricity between the cutting edge and the shank, with minimal tolerances.

The drill bit is coated with a thin golden titanium aluminum nitride film, less than one-thousandth the thickness of a human hair. The entire drill bit is enclosed in a transparent plastic tube, sealed with a blue rubber stopper, and then covered with a layer of shock-absorbing foam. Finally, it is placed in a white paper box.

Features of CNC Lathe Straight Shank Tungsten Carbide Drill Bits

The drill utilizes an ultra-fine-grain tungsten carbide (WC) substrate with a hardness of HRA90-93 and wear resistance 5-8 times that of high-speed steel (HSS), ensuring a long-lasting, sharp edge.

An optional TiAlN/AlCrN nano-coating offers high-temperature resistance (above 800°C) and reduces oxidation wear on the cutting edge caused by cutting heat.

The solid carbide construction offers a bending strength of ≥3000 MPa, effectively suppressing machining vibration and ensuring a smooth hole finish (Ra ≤ 1.6 μm).

An internal coolant hole model is available (coolant is delivered directly to the drill tip), solving heat dissipation challenges in deep holes (L/D ≤ 10).

Customized blade profiles, such as flat-bottom and step drills, are available, enabling single-step drilling and chamfering.

Applications of CNC Lathe Straight Shank Tungsten Carbide Drill Bits

High-temperature alloy (GH4169) blade mounting holes with a high-temperature-resistant coating extend tool life.
Drive shaft and lead screw center holes (45 steel, 40Cr) with a diameter of 2-20mm and a coaxiality of ≤0.02mm.
Precision drilling of stainless steel valve cores (304/316L) to prevent material sticking.
Machining micro-holes (0.5-3mm) in hardened die steel (SKD11, HRC60).
Drilling and turning operations on mill-turn centers. Straight shank design compatible with BMT/VDI turrets.

Specifications of CNC Lathe Straight Shank Tungsten Carbide Drill Bits

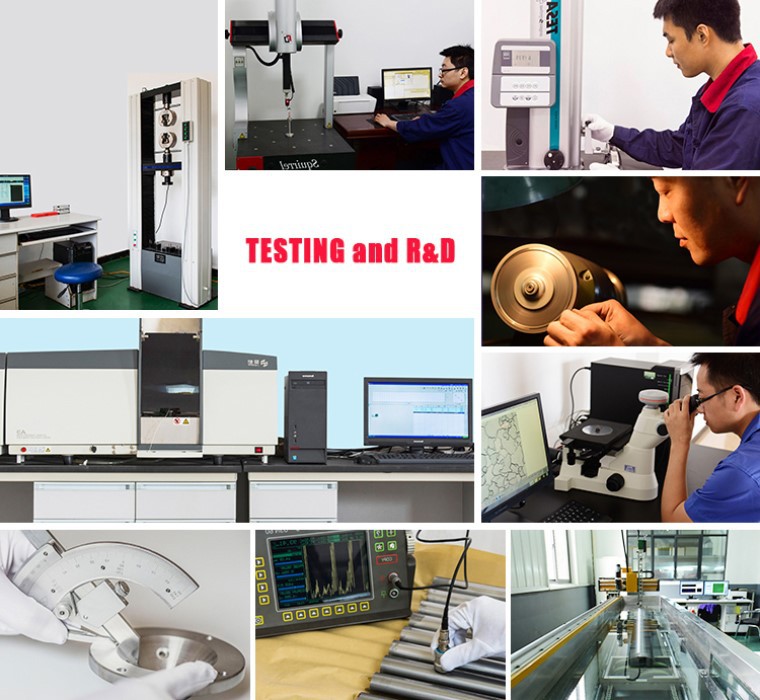

Testing and quality control of CNC Lathe Straight Shank Tungsten Carbide Drill Bits

FAQ for CNC Lathe Straight Shank Tungsten Carbide Drill Bits

Are you a CNC Lathe Straight Shank Tungsten Carbide Drill Bits factory or a CNC Lathe Straight Shank Tungsten Carbide Drill Bits manufacturer?
A: Yes, we are a CNC Lathe Straight Shank Tungsten Carbide Drill Bits factory but we generally use our trading company to handle the business abroad. It will be more convenient to receive the remittance and arrange the shipment.

What is the delivery method of CNC Lathe Straight Shank Tungsten Carbide Drill Bits?
A: Generally, we send CNC Lathe Straight Shank Tungsten Carbide Drill Bits by UPS, DHL or FedEx. Also, we can send by sea to a seaport or by air to the closest airport.

Why is your CNC Lathe Straight Shank Tungsten Carbide Drill Bit so cost-effective?
A: We cut out the middlemen in the end-to-end manufacturing process, and we obtain raw material directly from its source.

Do you do spot quality inspection of CNC Lathe Straight Shank Tungsten Carbide Drill Bits or full inspection of  CNC Lathe Straight Shank Tungsten Carbide Drill Bits?
A: 100% full inspection for sure. All unqualified CNC Lathe Straight Shank Tungsten Carbide Drill Bits are discarded.

How do you ensure your lead time for CNC Lathe Straight Shank Tungsten Carbide Drill Bits?
A: From material preparation to machining and finally to a full inspection. Every stage of production is strictly monitored and controlled to give you an accurate delivery time.

What is the MOQ of CNC Lathe Straight Shank Tungsten Carbide Drill Bits?
A: Depends on the quantity of CNC Lathe Straight Shank Tungsten Carbide Drill Bits; generally, no MOQ limit.

How to pay for a CNC Lathe Straight Shank Tungsten Carbide Drill Bits?
A: A bank transfer (T/T) will be acceptable.

What is the delivery time of CNC Lathe Straight Shank Tungsten Carbide Drill Bits?
A: Around 7-20 days, which depends on the quantity and production of CNC Lathe Straight Shank Tungsten Carbide Drill Bits.

What kind of package of CNC Lathe Straight Shank Tungsten Carbide Drill Bits is it?
A: Generally, we use a carton case or plywood case with protective material inside to ensure the safety of CNC Lathe Straight Shank Tungsten Carbide Drill Bits.

What is the lead time of CNC Lathe Straight Shank Tungsten Carbide Drill Bits?
A: From the order placed to cargo receiving will take around 10-25 days.
