Description of 6AL4V-ELI Titanium Medical Implant Bar
Titanium alloy products are strong, lightweight, have extraordinary corrosion resistance, and the ability to withstand extreme temperatures. 6AL4V-ELI is a higher purity version of Ti-6Al-4V, also known as medical grade titanium alloy, whose low interstitial elements, oxygen and iron, improve the plasticity and fracture toughness of the alloy, but the strength is reduced.
6AL4V-ELI Titanium Medical Implant bar is a good medical biomaterial, with a low elastic modulus (close to human bone), non-magnetic, long service life, good stability and safety, excellent corrosion resistance and oxidation resistance, and good impact resistance, cost-effective, and other characteristics.
6AL4V-ELI Titanium Medical Implant bars are very suitable for large surgical instruments, medical laboratories, orthopedics, cardiovascular and cerebrovascular, or dental and other medical fields. Our company can customize 6AL4V-ELI Titanium Implant Sheets of various sizes according to customer requirements.
Features of 6AL4V-ELI Titanium Medical Implant Bar
1. Ultra-High Biocompatibility
Extra Low Interstitial Element Control (ELI):
Oxygen (O) ≤ 0.13%, Nitrogen (N) ≤ 0.05%, Hydrogen (H) ≤ 0.012%, reducing the risk of tissue rejection.
Strong Surface Osseointegration: Sandblasting and Acid Etching (SLA) or anodizing creates a microporous structure that promotes bone cell attachment and growth.
2. Corrosion Resistance and Long-Term Safety
Resistant to body fluids (blood, tissue fluid) and disinfectants (alcohol, ethylene oxide), with no risk of metal ion release.
No secondary surgical removal is required after implantation (stainless steel or cobalt-chromium alloy may require replacement).
3. Lightweight and Non-Magnetic
The density of 4.43 g/cm³ (only 56% of stainless steel) reduces patient burden.
MRI Compatible: No magnetic artifacts, no impact on post-operative imaging.
Applications of 6AL4V-ELI Titanium Medical Implant Bar
1. Orthopedic Implants
Artificial Joint Stems: For hip/knee replacements (e.g., Zimmer Biomet acetabular cups).
Spinal Fusion Cages: Porous titanium rods promote vertebral fusion (e.g., lumbar interbody fusion).
Intramedullary Nails/Plate: For fracture fixation (e.g., femoral intramedullary nails).
2. Dental Implants
Dental Implants: Threaded cylinders with acid etching to improve primary stability (e.g., Nobel Biocare system).
Dental Frameworks: Lightweight and resistant to oral corrosion.
3. Craniomaxillofacial Reconstruction
Titanium Meshes/Plate: For repairing skull defects or maxillofacial deformities (e.g., after trauma or tumor resection).
Specifications of 6AL4V-ELI Titanium Medical Implant Bar
|
Grade |
Grade 5 |
|
Material |
Ti-6Al-4V |
|
Technique |
Hot Rolled, Cold Rolled, Cold Drawn, Sintering, Forging, Annealing |
|
Purity |
Ti:88-91% |
|
Thickness |
Customized |
|
Length |
Customized |
|
Tensile Strength |
950MPa |
|
Density |
4.43g/cm3 |
|
Shape |
Square, Round, Hexagonal, Flat, Strip |
|
Surface |
Polishing, bright, Ground, Black Oxide, Pickled, etc. |
|
Standard |
AMS 4928 |
Testing and Quality Control of 6AL4V-ELI Titanium Medical Implant Bar
FAQ for 6AL4V-ELI Titanium Medical Implant Bar
What is the MOQ?
A: Depends on quantity, generally, no MOQ limit.
How to pay for it?
A: A bank transfer (T/T) will be acceptable.
What is the delivery time?
A: around 7-20 days, which depends on the quantity and production.
What is the package?
A: cartoon case or plywood case.
What is the lead time?
A: From the order placed to cargo receiving will take around 10-25 days.
What is the delivery method?
A: Generally, we send cargo by UPS, DHL, or FedEx. Additionally, we can ship by sea to a seaport or by air to the nearest airport.

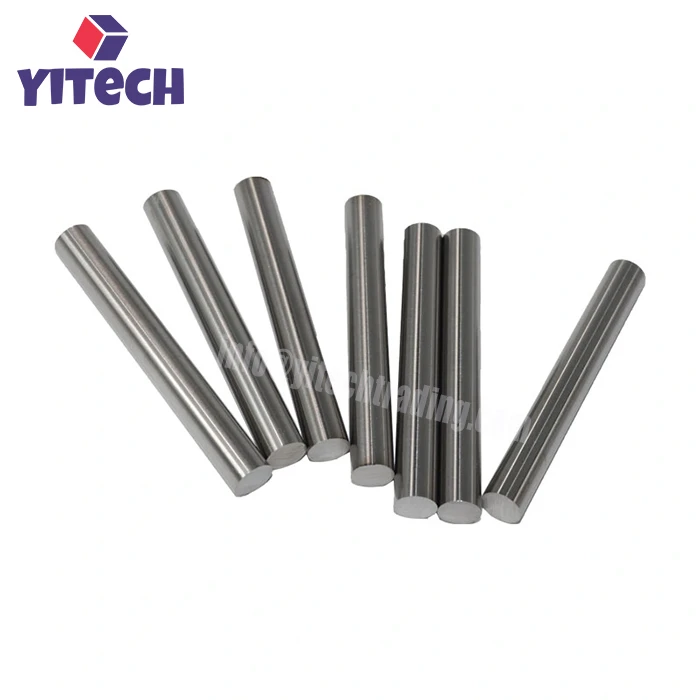

Picture of 6AL4V-ELI Titanium Medical Implant bar
