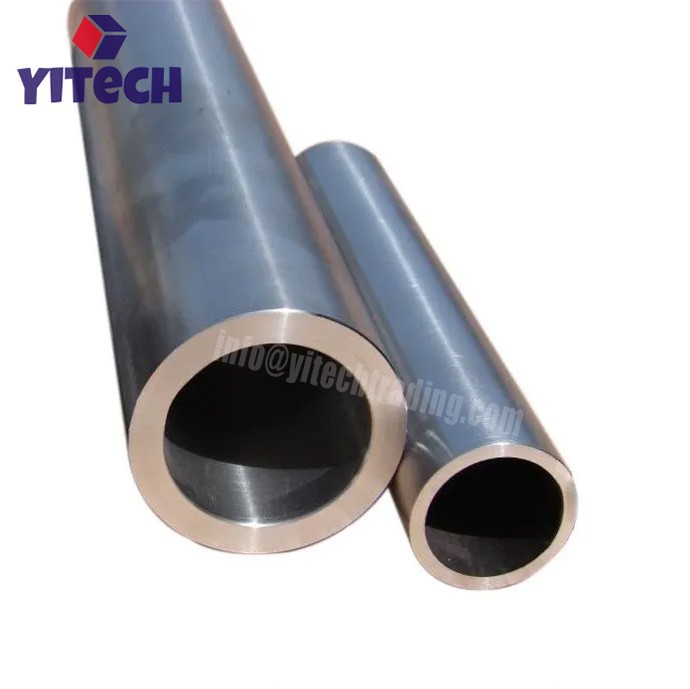

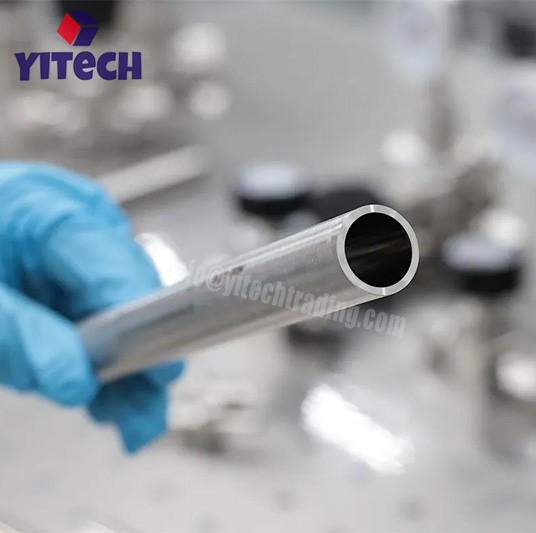

Hastelloy C2000 Nickel Based N06200 tube
Hastelloy C2000 Nickel Based N06200 tube is an advanced nickel-chromium-molybdenum alloy tubing. It is improved in corrosion resistance by adding copper. This tubing is developed from the Hastelloy series. It is designed for extreme corrosive environments. It has excellent oxidation resistance and resistance to localized corrosion like pitting and stress corrosion cracking. It also has good machinability and weldability. The typical composition is nickel (Ni) ≥59%, chromium (Cr) ≈23%, molybdenum (Mo) ≈16%, with a small amount of copper (Cu ≈1.6%) and iron (Fe).
Hastelloy C2000 Nickel Based N06200 tube is widely used in chemical, petrochemical, environmental protection and marine engineering fields. It is suitable for extreme environments such as strong acids, high temperatures and chloride-containing conditions. It is used in reactor piping, heat exchangers, flue gas desulfurization systems and seawater desalination equipment. Its excellent corrosion resistance, weldability and high-temperature stability can greatly increase equipment life and reduce maintenance costs.
Features of Hastelloy C2000 Nickel Based N06200 tube
Excellent corrosion resistance:
Hastelloy C2000 Nickel Based N06200 tube performs well in both oxidizing and reducing media. It is especially suitable for mixed acid environments (like sulfuric acid + hydrochloric acid).
The addition of copper significantly improves the tube's resistance to sulfuric acid corrosion. The high molybdenum content enhances its resistance to chloride corrosion.
High-temperature stability:
Hastelloy C2000 Nickel Based N06200 tube remains strong at high temperatures. It is suitable for heat exchangers and reactor piping below 500°C.
Ease of fabrication and welding:
Compared with traditional nickel-based alloys (like C276), Hastelloy C2000 Nickel Based N06200 tube is easier to form in both cold and hot working. It can be welded using conventional processes like TIG/MIG.
Applications of Hastelloy C2000 Nickel Based N06200 tube
Chemical and petrochemical: Hastelloy C2000 Nickel Based N06200 tube is used to make reactor piping and heat exchanger tube bundles in strong acid environments, especially in processes with sulfur and chloride ions.
Environmental and energy: Hastelloy C2000 Nickel Based N06200 tube is used in key parts of flue gas desulfurization (FGD) systems and acid gas treatment units.
Pharmaceutical and food: Hastelloy C2000 Nickel Based N06200 tube is used in piping for transporting high-purity media to avoid metal ion contamination.
Marine engineering: Hastelloy C2000 Nickel Based N06200 tube is used in salt spray-resistant piping in seawater desalination equipment.
|
Parameter |
Specification Range / Typical Value |
Remarks |
|
Outer Diameter (OD) |
6 mm ~ 300 mm |
Custom sizes available |
|
Wall Thickness (WT) |
0.5 mm ~ 20 mm |
Thin to thick wall options |
|
Length |
3 m ~ 12 m (Custom up to 18m) |
Standard or cut-to-length |
|
Standard |
ASTM B622 / ASTM B619 / ASME SB-622 |
Compliant with international specs |
|
Surface Finish |
Annealed & Pickled |
Polished or machined surfaces optional |
|
Corrosion Resistance |
Sulfuric acid, HCl, phosphoric acid, chlorides, wet chlorine |
Ideal for harsh chemical environments |
FAQ
Are you a factory or manufacturer?
A: Yes, we are a factory but we generally use our trading company to handle the business abroad. It will be more convenient to receive the remittance and arrange the shipment.
What is the delivery method?
A: Generally, we send cargo by UPS, DHL or FedEx. Also, we can send by sea to seaport or by air to the closest airport.
Why is your product so cost-effective?
A: We cut out the middlemen in the end-to-end manufacturing process and we obtain raw material directly from its source.
Do you do spot quality inspection or full inspection?
A: 100% full inspection for sure. All unqualified products are discarded.
How do you ensure your lead time?
A: From material preparation to machining and finally to a full inspection. Every stage of production is strictly monitored and controlled to give you an accurate delivery time.
What is the MOQ of Hastelloy C2000 Nickel Based N06200 tube?
A: Depends on quantity, generally, no MOQ limit.
How to pay for it?
A: A bank transfer (T/T) will be acceptable.
What is the delivery time?
A: around 7-20 days which depends on the quantity and production.
What is kind of the package?
A: Generally, we use a carton case or plywood case with protective material inside to ensure the save of cargo
What is the lead time?
A: from order placed to cargo receiving will take around 10-25 days.
