Products Description
In terms of military, defense, electronics, aerospace, and many more industries, Molybdenum Copper alloy has a wide applicability scope due to its exceptional strength and resistance properties.
Molybdenum copper alloy sheets were previously used in tungsten copper alloys, but now, thanks to their advanced Powder Metallurgy and Molten Metal Infiltration techniques, Moly Copper Alloys have almost fully replaced them in many fields of industry.
Non-magnetic, low thermal expansion, and light weight are further advantages of Molybdenum Copper Alloy Sheets over other materials which combined with its excellent thermal conductivity, further increase its adaptability for strenuous applications, and extend its service life.
High precision semiconductor and microelectronic devices, as well as electrical contacts and other electronic devices, as well as military gadgets with high weight dependencies can benefit from Molybdenum Copper Alloy Sheets from military.

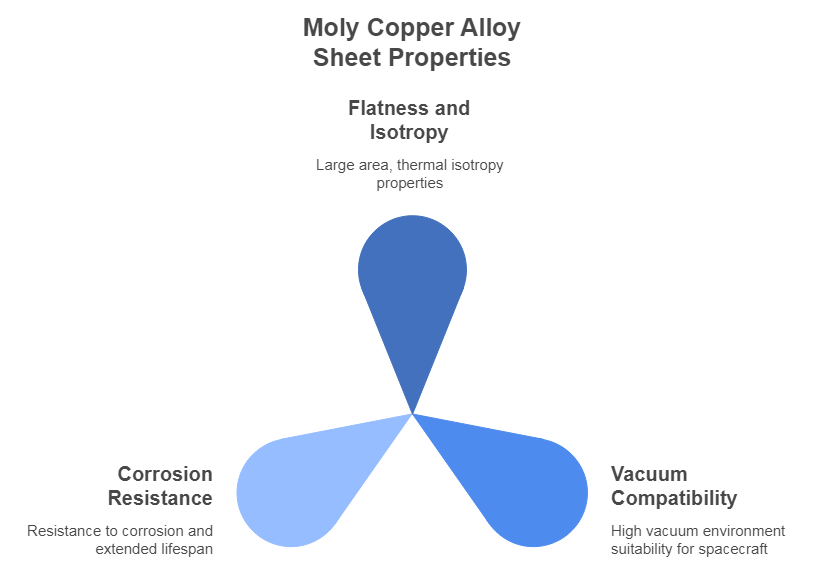

Features Of Moly Copper Alloy Sheet
1. Large area flatness and thermal isotropy: the dimensions can reach 1200mm×600mm, the planetary error is ≤0.05mm/m, and there is no difference in thermal conductivity.
2. High vacuum compatibility: The air deflation rate under 10⁻⁶Pa vacuum is ≤1×10⁻¹¹Pa·m³/(s·cm²), suitable for spacecraft thermal control.
3. Corrosion resistance and long life: The corrosion rate is ≤0.01mm/a in 300°C sulfur atmosphere, and the life span is 3 times longer than that of traditional materials.

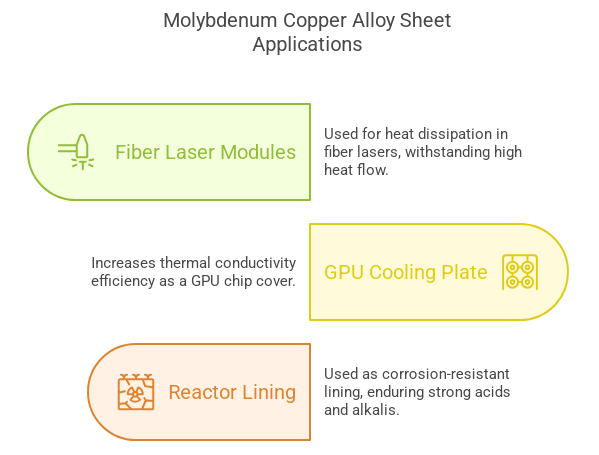

applications Of Moly Copper Alloy Sheet
1. Molybdenum copper alloy sheet is used for heat dissipation of kilowatt-level fiber laser pump modules and withstands a heat flow density of 10kW/cm².
2. As the cover sheet of the GPU chip liquid-cooled heat-cooling sheet, the thermal conductivity efficiency is increased by 15%.
3. Molybdenum copper alloy sheet is used for corrosion-resistant reactor lining and is resistant to strong acid and alkali environment.
Specification Of Moly Copper Alloy Sheet
|
Grade |
Molybdenum contentWt% |
Copper contentWt% |
The density ofg/cm3 |
Conductivity of heatW/(M.K) |
Coefficient of thermal expansion(10-6/K) |
|
Mo85Cu15 |
85± 1 |
Balance |
10 |
160 - 180 |
6.8 |
|
Mo80Cu20 |
80 ± 1 |
Balance |
9.9 |
170 - 190 |
7.7 |
|
Mo70Cu30 |
70 ± 1 |
Balance |
9.8 |
180 - 200 |
9.1 |
|
Mo60Cu40 |
60 ± 1 |
Balance |
9.66 |
210 - 250 |
10.3 |
|
Mo50Cu50 |
50 ±0.2 |
Balance |
9.54 |
230 - 270 |
11.5 |
