Description of Molybdenum Head Mandrel
Molybdenum is a silver-white refractory metal that is more ductile and ductile than the metal tungsten. Molybdenum head is made of molybdenum powder and a small amount of rare earth materials, which are processed by mixing, forming, rolling, and high-temperature sintering. Molybdenum Head Mandrel is a good thermal conductor with a high melting point, high corrosion resistance, low resistivity, low thermal expansion coefficient, excellent creep resistance, good high-temperature oxidation resistance, and long service life.
Molybdenum Head Mandrels are often used for hot rolling and piercing of seamless steel pipes, such as brazing steel, high temperature alloy steel and stainless steel. Molybdenum heads are also widely used in semiconductor materials, light source materials, electric vacuum devices, and heating elements in high-temperature furnaces. In addition to high-quality molybdenum heads, our company can also provide other molybdenum products, such as molybdenum machining parts, molybdenum crucibles, molybdenum boats, and molybdenum rods.
Features of Molybdenum Head Mandrel
1. Ultra-High-Temperature Stability
With a melting point as high as 2610°C, it can operate for extended periods in high-temperature environments between 1200°C and 1800°C (e.g., glass softening and crystal growth).
High-Temperature Strength Retention: Tensile strength >100 MPa at 1500°C, preventing bending or deformation.
2. Low Thermal Expansion & Dimensional Stability
The thermal expansion coefficient is 5.8×10⁻⁶/°C, close to that of ceramic materials, reducing dimensional deviation caused by thermal stress.
No deformation at high temperatures: Suitable for precision forming processes (e.g., fiber drawing).
3. Corrosion Resistance
Resistant to molten glass and metal vapors (e.g., aluminum and copper), its lifespan far exceeds that of stainless steel mandrels.
Resistant to acidic and alkaline atmospheres (e.g., fluoride vapor), it is suitable for specialized glass processing.
4. High Surface Finish
Roughness Ra <0.4μm after polishing, preventing adhesion to melt or fiber materials.
Low coefficient of friction: Reduces friction losses with materials (such as optical fiber coatings).
Applications of Molybdenum Head Mandrel
1. Glass and Fiber Optic Manufacturing
Fiber preform drawing: Molybdenum mandrels serve as support cores, resistant to temperatures up to 1600°C (e.g., Corning fiber production lines).
Specialty glass tube molding: Guides the flow of molten glass (e.g., borosilicate glass, quartz glass).
2. Single Crystal Growth
Sapphire (Al₂O₃) crystal growth: Molybdenum mandrels are used in the EFG (edge-confined film growth) method.
Silicon carbide (SiC) single crystals: Resistant to high-temperature steam corrosion up to 2200°C.
3. High-Temperature Forming and Sintering
Ceramic dry pressing: Serves as mold mandrels, resistant to high-temperature sintering (e.g., Al₂O₃ and ZrO₂ ceramics).
Powder Metallurgy: Supports the high-temperature HIP (hot isostatic pressing) process.
Specification of Molybdenum Head Mandrel
|
Material |
Molybdenum or Molybdenum Alloy |
|
Purity |
Mo=>95%,Ti=0.5%,Zr=0.08-0.1%,C=0.02-0.03% |
|
Technique |
Forning, Rolling, Welding, Punching, Sintering, Machining |
|
Diameter |
20- 300mm |
|
Density |
≥9.4g/cm3 |
|
Surface |
Alkaline cleaning, High Polished, Bright, Black |
|
Standard |
GB, ASTM |
|
Delivery Time |
About 20 days |
|
Certification |
ISO 9001 |
Our Services
Pre-Sales Support
Answer: Tungsten, molybdenum, tantalum, niobium, titanium, nickel, titanium, zirconium, nickel products, professional knowledge and technical consultation, and tungsten, molybdenum, tantalum, niobium, titanium, nickel, titanium, zirconium, and nickel products. We have professional customer service staff and technical staff to answer any questions for you at any time.
Retail Big Data
Answer: Our principle: punctual delivery, high performance, and thoughtful service. At the same time, we will keep the production process monitoring files for at least 5 years.
After-Sales Support
Answer: After the product is used, we will track the detailed usage of the product, we will provide a full range of industry solutions, and answer any questions at any time.
benefits of Molybdenum Head Mandrel
Temperature Resistance: Molybdenum boasts a very high melting point, greater than 2,600°C, making it extremely temperature-resistant. This means that our Molybdenum Head Mandrels would not lose their shape and strength under intense heat, which is highly necessary in applications such as high-temperature manufacturing, metal forming, and vacuum furnaces.
Excellent strength and toughness: due to the great strength of molybdenum, it features outstanding resistance to both mechanical wear and plastic deformation. Thus, it provides that within several cycles, the mandrels do not lose their performance and shape under the stress of heavy loads or in a high-pressure environment.
Oxidation and Corrosion Resistance: Molybdenum has very good resistance to oxidation and corrosion, especially at higher temperatures. For this reason, our Molybdenum Head mandrels are seldom found with any sort of failure while operating in a surrounding of reactive gases or high oxygen atmospheres, which might be the case with high-temperature furnaces or vacuum systems.
Precision and Customization: We manufacture molybdenum head mandrels with extreme precision. With the capability for custom sizing, shapes, and surface finishes, we can provide a perfect fit for your unique manufacturing or fabrication need. Whether you require mandrels in small batch production or large-volume runs, we can provide tailored solutions.
Excellent thermal conductivity: Molybdenum has a very high thermal conductivity, and what this means is that, within the mandrel, there is even dispersion of heat; therefore, thermal shock is hugely minimized and increases its lifespan. This property makes it especially useful in temperature-critical applications.
Core Competencies
Expertise in advanced manufacturing: We combine over two decades of experience in the manufacture of Molybdenum parts with the latest technological and manufacturing practice advances to provide the best Molybdenum Head Mandrels. It is in careful attention to detail in the manufacture of each mandrel that ensures continued superior performance and durability.
Custom Engineering Solutions: We realize each of our applications has its own special requirements. For this reason, our team of experienced engineers will work closely with clients in order to provide custom solutions that meet specific design and/or dimensional needs. Whether it be a special shape, a specific size, or a unique coating-we can do it.
Quality: The quality of the steel type should be controlled; for every batch Molybdenum Head Mandrels have to be tested on stringent strength, thermal stability, dimension accuracy, and surface quality. As a result of our strict checks in each stage of manufacture, it is ensured that defects are completely avoided in the products.
Global supply and fast delivery: Our vast global supply chain ensures we can meet the demand of international buyers. With reliable shipping partners and efficient logistics, we at Molybdenum Head Mandrels can deliver to any location anywhere across the globe right on time and within budget.
Value Proposition
The key benefits of choosing our Molybdenum Head Mandrels include the following, directly affecting your operations:
Our Molybdenum Head Mandrels ensure smoother and more efficient manufacturing because of their high strength, wear resistance, and thermal stability. Because these can withstand multiple cycles of use, these mandrels have fewer stoppages and, therefore, increase the overall efficiency of the process.
Lower Consumables Cost: The long life and toughness of our Molybdenum Head Mandrels reduce the frequency of replacements, hence giving cost savings for many years. This makes them a highly cost-effective choice for high-volume production.
Improved Product Quality: The accuracy and stability of Molybdenum Head Mandrels help ensure each part they produce is of the best qualitative standards and levels. This is very critical in industries such as aerospace, electronics, and automotive, where the end product quality has a direct relation with the safety and reliability of such products.
Application-specific customization: We work out specific solutions for clients with peculiar needs so the mandrel turns out to be ideally fitted to the fabrication process, be it precision wire drawing or metal forming; Molybdenum Head Mandrels can be designed for the specific needs that your operation requires.
Benefits to Buyers
Long-term durability: the wear resistance and high-temperature strength of molybdenum mean that our head mandrels last longer and maintain their integrity through extensive use, reducing maintenance costs and extending the lifespan of your tools and equipment.
Performance You Can Count On in Harsh Environments: From very high-temperature furnaces to vacuum systems and other extreme conditions, our Molybdenum head mandrels are designed not to fail. This means you can be assured that the performance will be consistent, even under the most extreme conditions.
Improved process control: With uniform heat distribution, molybdenum ensures performance stability in these mandrels. Consequently, thermal distortion is reduced, enhancing the accuracy of your processes and assuring consistent results for wire drawing, metal forming, and other high-precision jobs.
Bulk Purchasing Discounts: We offer competitive pricing to ensure that large-scale manufacturers wanting to purchase high-quality Molybdenum Head Mandrels in bulk get price-effective deals. Our pricing structure ensures that you can maintain high-quality standards without going beyond your budget.
Global Outreach with Expert Support: Our team is available to help you with technical queries, product specifications, or customization-related inquiries. Whether it be catering to Europe, Asia, or North America, we can deliver Molybdenum Head Mandrels to your location with the least lead times, which ensures that your projects keep running with the best time frames.
Why Choose Us?
With more than two decades of manufacturing experience in Molybdenum parts, we are a reliable supplier for various industries that engage in high-performance material applications. A Molybdenum Head Mandrel supplied by us is assured of ultimate strength, precision, and durability, hence finding applications in manufacturing and fabricating works globally.
By partnering with us, you will have access to:
Manufacturing of high-quality products to meet the most demanding industrial standards. Custom solutions to suit your very particular operational needs. A robust and effective global supply chain to avail the product on time, coupled with excellent service. Expert advice and consultation by our experienced team will help you choose the best solution for your needs.
Call Us Today: Are you interested in upgrading your manufacturing process with our high-performance Molybdenum Head Mandrels? Reach out today for a quote, to discuss your needs, or even to learn more about how we can deliver custom solutions tailored to your requirements. Our team stands ready to answer any technical questions and cater to every demand in your supply chain.
FAQ for Molybdenum Head Mandrel
Are you a Molybdenum Head Mandrel factory or a Molybdenum Head Mandrel manufacturer?
A: Yes, we are a Molybdenum Head Mandrel factory, but we generally use our trading company to handle the business abroad. It will be more convenient to receive the remittance and arrange the shipment.
What is the delivery method of the Molybdenum Head Mandrel?
A: Generally, we send the Molybdenum Head Mandrel by UPS, DHL, or FedEx. Also, we can send by sea to a seaport or by air to the closest airport.
Why is your Molybdenum Head Mandrel so cost-effective?
A: We cut out the middlemen in the end-to-end manufacturing process, and we obtain raw material directly from its source.
Do you do spot quality inspection of Molybdenum Head Mandrel or full inspection of Molybdenum Head Mandrel?
A: 100% full inspection for sure. All unqualified Molybdenum Head Mandrels are discarded.
How do you ensure your lead time for Molybdenum Head Mandrel?
A: From material preparation to machining and finally to a full inspection. Every stage of production is strictly monitored and controlled to give you an accurate delivery time.
What is the MOQ of Molybdenum Head Mandrel?
A: Depends on the quantity of Molybdenum Head Mandrel; generally, no MOQ limit.
How to pay for the Molybdenum Head Mandrel?
A: A bank transfer (T/T) will be acceptable.
What is the delivery time of the Molybdenum Head Mandrel?
A: Around 7-20 days, which depends on the quantity and production of Molybdenum Head Mandrel.

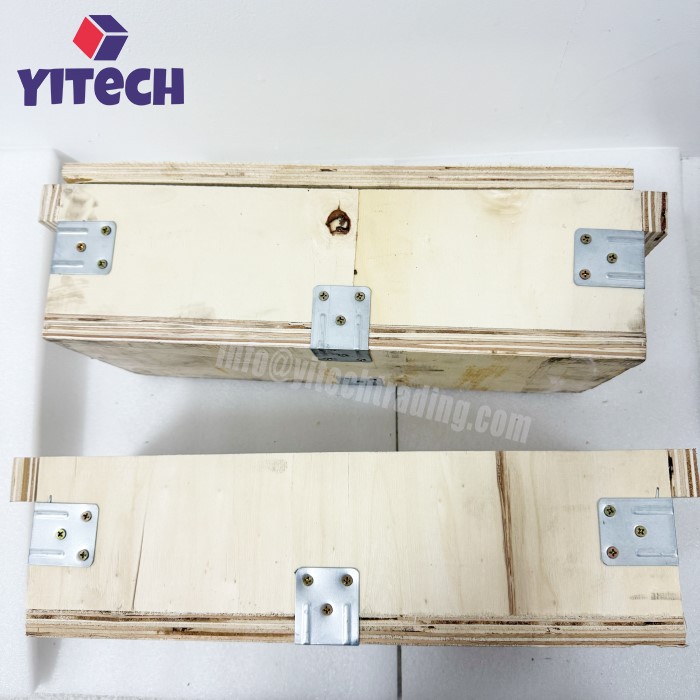

What kind of package of Molybdenum Head Mandrel is it?
A: Generally, we use a carton case or a plywood case with protective material inside to ensure the safety of the Molybdenum Head Mandrel.
What is the lead time of the Molybdenum Head Mandrel?
A: From the order placed to cargo receiving will take around 10-25 days.
