Product Details

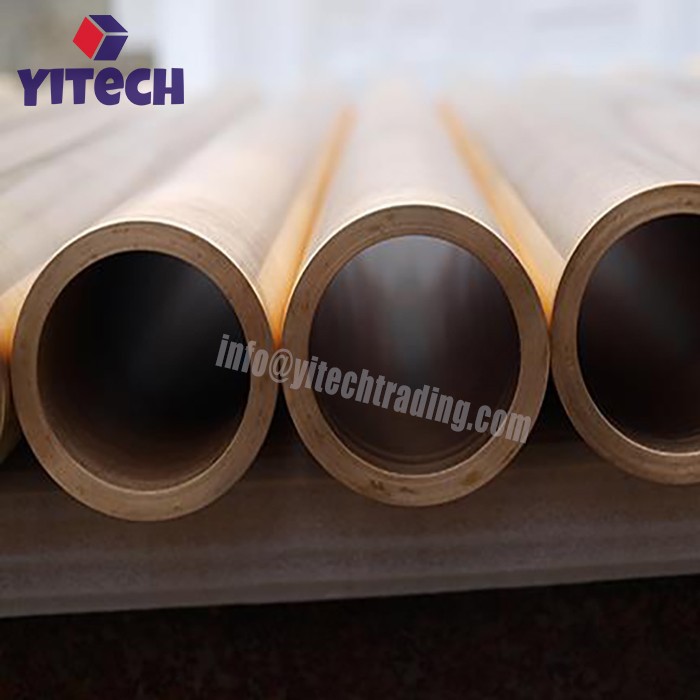

Beryllium copper tubes are made from an alloy of copper and beryllium, offering a combination of high strength, excellent thermal and electrical conductivity, and good corrosion resistance.Beryllium copper is a supersaturated solid solution copper-based alloy, a copper alloy with bismuth as the main alloying element, also known as beryllium bronze.
Features of Beryllium copper tubes
Beryllium copper is an alloy with good mechanical, physical and chemical properties. After quenching, it has high strength, elasticity, wear resistance, fatigue resistance and heat resistance, with feature of high conductivity,thermal conductivity, cold resistance and non-magnetic, no sparks when hitting, easy to weld and excellent corrosion resistance in the atmosphere, fresh water and seawater.
Application of Beryllium copper tubes
Casting beryllium bronze: (Cu-2Be-0.5Co-0.3Si, Cu-2.6Be-0.5Co-0.3Si, Cu-0.5Be-2.5Co, etc.) For explosion-proof tools, various molds (inner inserts for plastic injection molding dies, integral cavities for blow molds, automotive molds), bearings, bushings, bushings, gears and various electrodes
Machining beryllium bronze: (Cu-2Be-0.3Ni, Cu-1.9Be-0.3Ni-0.2Ti) is mainly used as a variety of advanced elastic components, especially requiring good conductivity, corrosion resistance, wear resistance, cold resistance, various no magnetic components, used as a large number of bellows, diaphragms, bellows, micro switches, etc.
Specification of Beryllium copper tubes
|
Brand |
Be |
Co |
Ni |
Co+Ni |
Co+Ni+Fe |
Pb |
Cu |
Other |
|
C17200 |
1.8-2.0 |
/ |
/ |
Min 0.2 |
Max 0.6 |
Max 0.2 |
Bal. |
Max 0.05 |
Technical Specification
|
Density |
Hardness after Quenching |
Tensile Strength |
Yield Strength (0.2%) |
Elastic Modulus |
Conductivity |
Thermal Conductivity at 20ºC |
|
g/cm |
HRC |
MPa |
MPa |
GPa |
IACS |
w/m.k |
|
8.3 |
≥36-42 |
≥1000 |
1035 |
128 |
18% |
105 |
